Sequence Controller Part 3–Board design and MOSFET testing…

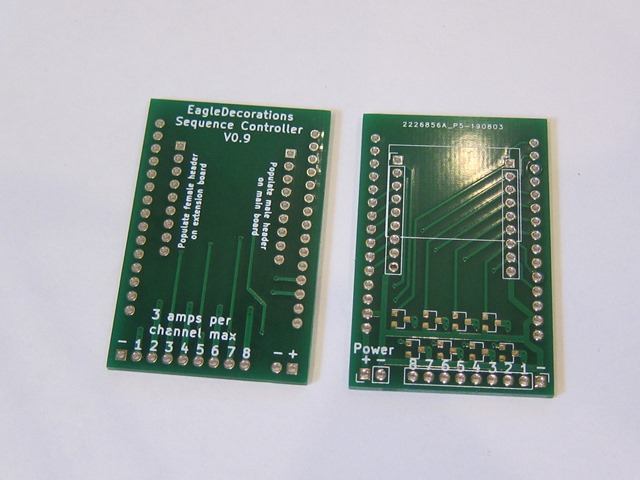

Boards are in the house!

IMG_9608

JLCPCB did a nice job, and the boards look fine. Except:

IMG_9609

Yeah. Those pins are beautifully aligned a very precise 0.1” from where they are supposed to be…

Pro tip: Print out your design and put your components on it so that you can check the design.

Meta pro tip: Follow your pro tips.

Anyway, that’s not the only problem; it turns out that the power and LED parts of the connector are right underneath the end of the board, so you can’t use a normal header on them (you could use a right-angle one if you wanted), so I did a new revision of the board with 1.0” rather than 1.1” for the ESP and extended the board so the connectors are out on the end. That’s on the slow ship from China right now.

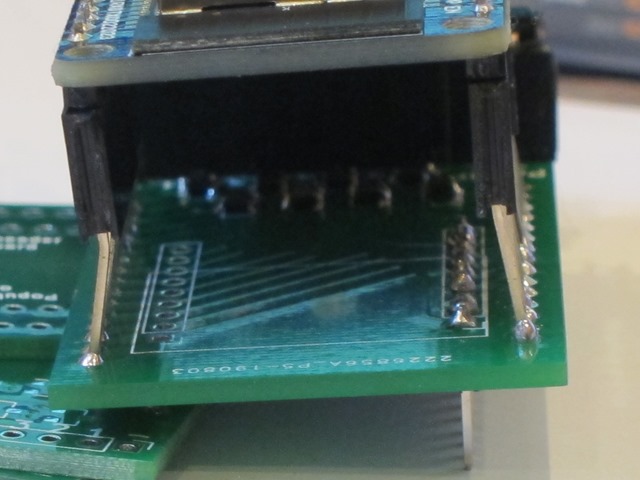

Then I did a bit of bodging with some long-tail female headers so I could still do testing.

IMG_9611

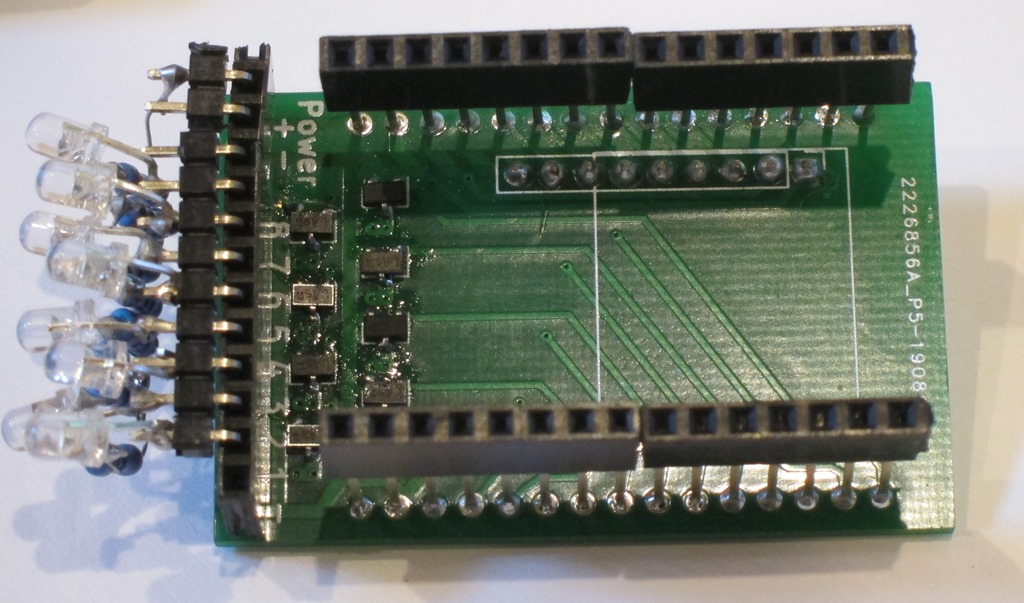

Then I put a header for the LEDs and carefully soldered 8 resistors and LEDs to the output pins, so that I have an 8-channel version available for writing software.

IMG_9612

The MOSFETs are pretty darn small, but soldering them was mostly okay. I didn’t bother doing a stencil for this rev so I could reflow, but I will likely do that for the next version.

I have not yet tested what I think is the coolest part of the design; the board is both a main board and an expander board; you can connected a second version of the board on the back of the one with the ESP32 connected to it, and it will get you channels 9-16.

Here’s a quick video of the current state:



Sequence controller test from Eric Gunnerson on Vimeo.

It’s doing a “breathe” on all 8 LEDs with varying timespans for the delay action.

This is the 6th or 7th time that I’ve written sequencing software; there was a Motorola HC11 version, two AVR versions with AC dimming, a 4-channel chaser, and a couple of WS2812 versions.

They were all very simple; take the current state of all the output and drive the outputs to a new state over a given period of time. That works fine, but writing the animation can be annoying and it’s not very compact. This time I wanted to do something different and more elegant:

Here’s my spec:

     IMG_9614

That means ‘loop variable %A from 0 to 7’, and then execute a 100 cycle (1 second) dim of channel %A from its current state to 1.0 (full bright), and then do the same dim back down to zero.

I also wanted to write the vast majority of the code on my desktop, so I took a break and wrote three blog posts about how I do that. It’s basically compile-time dependency replacement with unit tests mostly written using TDD.

Then it was off to writing a *lot* of test code and a lot of classes; 18 difference source files, only two of which are ESP specific at this point. And 15 test classes to drive the tests. It mostly worked great, I did 95% of my coding and only had once latent bug that I had to track down on the ESP32. It was weird one that turned out to have very random behavior. I suspected it was uninitialized data, and that turned out to be mostly right; two subsequent calls to a method used the same stack and I forgot that strncpy doesn’t copy a null. But it all works now. Here’s the code the video is running:

$1$LOOP %B 100:10:-10
    $1$LOOP %A 0:7
        $%B$D%A,1.0
        $%B$D%A,0.0
    $1$ENDLOOP
$1$ENDLOOP”

Variable %B is used to change the cycle count for the operations from 100 to 10 in steps of 10, and then the inner loop cycles through the 8 different outputs. Everything works great.

The code all lives here if you want to see the actual code or a more realistic testing example.

Next steps:

  1. Wireless implementation to do the connection to the ESP
  2. Save and load of the animation
  3. Web interface to edit the animation.
  4. Change the language to move the cycle count into the “dim” command, as it’s not necessary for the loop commands.
  5. Build a second board to test channels 9-16.





Sequence Controller Part 3–Board design and MOSFET testing…

Boards are in the house!

IMG_9608

JLCPCB did a nice job, and the boards look fine. Except:

IMG_9609

Yeah. Those pins are beautifully aligned a very precise 0.1” from where they are supposed to be…

Pro tip: Print out your design and put your components on it so that you can check the design.

Meta pro tip: Follow your pro tips.

Anyway, that’s not the only problem; it turns out that the power and LED parts of the connector are right underneath the end of the board, so you can’t use a normal header on them (you could use a right-angle one if you wanted), so I did a new revision of the board with 1.0” rather than 1.1” for the ESP and extended the board so the connectors are out on the end. That’s on the slow ship from China right now.

Then I did a bit of bodging with some long-tail female headers so I could still do testing.

IMG_9611

Then I put a header for the LEDs and carefully soldered 8 resistors and LEDs to the output pins, so that I have an 8-channel version available for writing software.

IMG_9612

The MOSFETs are pretty darn small, but soldering them was mostly okay. I didn’t bother doing a stencil for this rev so I could reflow, but I will likely do that for the next version.

I have not yet tested what I think is the coolest part of the design; the board is both a main board and an expander board; you can connected a second version of the board on the back of the one with the ESP32 connected to it, and it will get you channels 9-16.

Here’s a quick video of the current state:



Sequence controller test from Eric Gunnerson on Vimeo.

It’s doing a “breathe” on all 8 LEDs with varying timespans for the delay action.

This is the 6th or 7th time that I’ve written sequencing software; there was a Motorola HC11 version, two AVR versions with AC dimming, a 4-channel chaser, and a couple of WS2812 versions.

They were all very simple; take the current state of all the output and drive the outputs to a new state over a given period of time. That works fine, but writing the animation can be annoying and it’s not very compact. This time I wanted to do something different and more elegant:

Here’s my spec:

     IMG_9614

That means ‘loop variable %A from 0 to 7’, and then execute a 100 cycle (1 second) dim of channel %A from its current state to 1.0 (full bright), and then do the same dim back down to zero.

I also wanted to write the vast majority of the code on my desktop, so I took a break and wrote three blog posts about how I do that. It’s basically compile-time dependency replacement with unit tests mostly written using TDD.

Then it was off to writing a *lot* of test code and a lot of classes; 18 difference source files, only two of which are ESP specific at this point. And 15 test classes to drive the tests. It mostly worked great, I did 95% of my coding and only had once latent bug that I had to track down on the ESP32. It was weird one that turned out to have very random behavior. I suspected it was uninitialized data, and that turned out to be mostly right; two subsequent calls to a method used the same stack and I forgot that strncpy doesn’t copy a null. But it all works now. Here’s the code the video is running:

$1$LOOP %B 100:10:-10
    $1$LOOP %A 0:7
        $%B$D%A,1.0
        $%B$D%A,0.0
    $1$ENDLOOP
$1$ENDLOOP”

Variable %B is used to change the cycle count for the operations from 100 to 10 in steps of 10, and then the inner loop cycles through the 8 different outputs. Everything works great.

The code all lives here if you want to see the actual code or a more realistic testing example.

Next steps:

  1. Wireless implementation to do the connection to the ESP
  2. Save and load of the animation
  3. Web interface to edit the animation.
  4. Change the language to move the cycle count into the “dim” command, as it’s not necessary for the loop commands.
  5. Build a second board to test channels 9-16.





Just enough biochemistry – Insulin resistance and Gluconeogenesis

Disclaimer: “Just enough biochemistry” means I’m going to be simplifying what is some very complex biochemistry. Sometimes the omitted details are going to matter.

****

There’s this weird thing that happens as part of insulin resistance that I don’t think gets discussed often enough, and since I think it drives much of what is bad about insulin resistance, I’m going to discuss it here. We’ll start with glucose metabolism:

Elevated blood glucose / elevated insulin

When blood glucose is elevated, the pancreas secretes insulin, and that changes how the body’s metabolism operates:

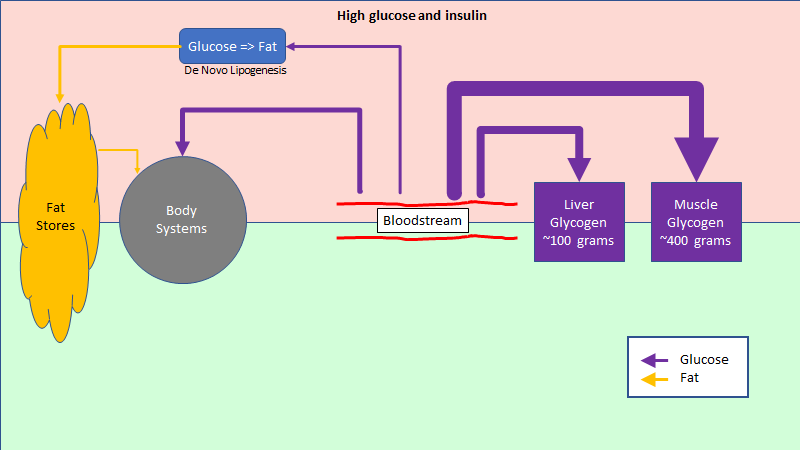

Insulin is a signal to pull excess glucose out of the blood. The body has 4 ways to do this, shown as purple arrows in the diagram. The are, from the right to the left:

  1. Store it as muscle glycogen. There are a lot of muscle cells in the body and the conversion to glycogen is quick, so they can take up a lot of glucose quickly – that is is why the arrow is so big. But their ability to take up glucose is dependent on how much glycogen they already are storing – how much space there is for new glycogen. There be a lot of extra space after a long run and very little space after a few hours watching TV.
  2. Store it as liver glycogen. The liver can’t store quite as much glycogen, but it can still store it pretty quickly.
  3. Burn it as it comes into the bloodstream. The size of this arrow depends on what you are doing; if you are just sitting it’s pretty small, if you are exercising it can be bigger. With high insulin the body will choose to burn more glucose and less fat; notice the small size of the fat arrow.
  4. Convert it to fat. Excess glucose that can’t be handled in the other ways will be converted to fat and stored through a process known as “de novo lipogenesis” (“new fat creation”). The body isn’t very fast at doing this, so this arrow is small. If there is a lot of glucose to convert to fat, this process will take hours.

Broadly speaking, this part of the diagram is about storing glucose energy that is coming in from the diet.

Low blood glucose / low insulin

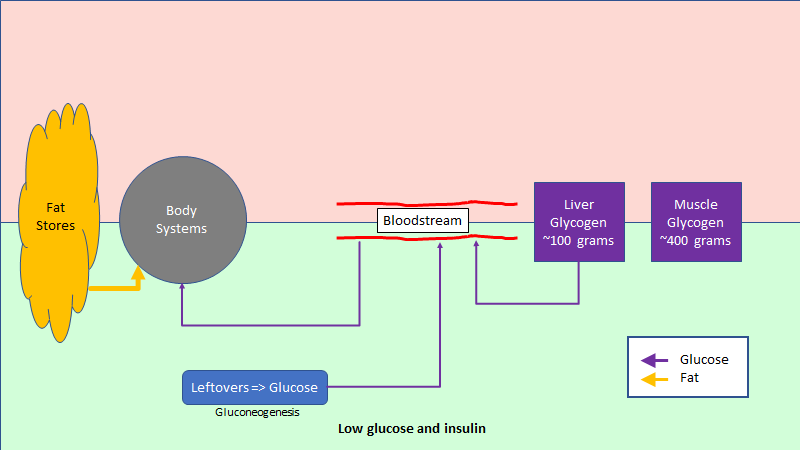

When blood glucose is low, the pancreas secretes glucagon:


When the blood glucose is low, the glucagon is a signal to do something to increase the glucose in the blood.

There are only two sources – outside of eating – to raise blood glucose when it is low:

  1. The glycogen that was stored in the liver previously can be converted back to glucose and released into the bloodstream. This is good for the short term, on the order of a few hours, but at some point the liver will run out of glycogen.
  2. If glycogen stores run low, then the body will convert metabolic leftovers into glucose through a process known as “gluconeogenesis” (new glucose creation). This might be temporary until more carbs are eaten, or it might be continuous if there is little glucose coming through food.

When glucose is rare, the body will try to conserve it, so it will burn proportionally more at; that is why the fat arrow is bigger in this part of the diagram.

There is another process – ketosis – that kicks in when there is little glucose coming in from the diet, but that’s a bit beyond the scope of this discussion.

This part of the picture is about running the body on energy that has been previously stored.

The full picture

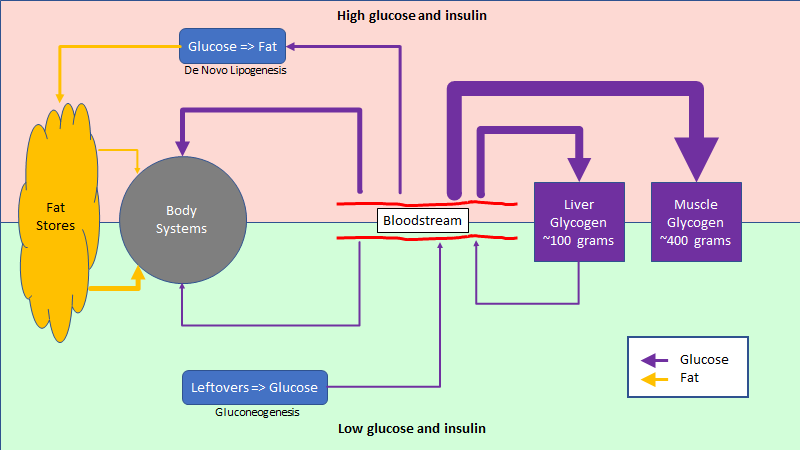

Here’s the full picture:


This diagram shows how a healthy – insulin sensitive – metabolism works. If you eat a meal that has enough carbs to raise your blood glucose, you will be in the top half of the diagram. Between meals – and especially at night – you will be on the bottom portion of the diagram.

Blood glucose and insulin resistance

One of the tests for insulin resistance/type II diabetes is the Oral Glucose Tolerance Test. In the OGTT a person who has fasted overnight drinks a solution with 50 grams of glucose in it and their glucose level is measured every 30 minutes.

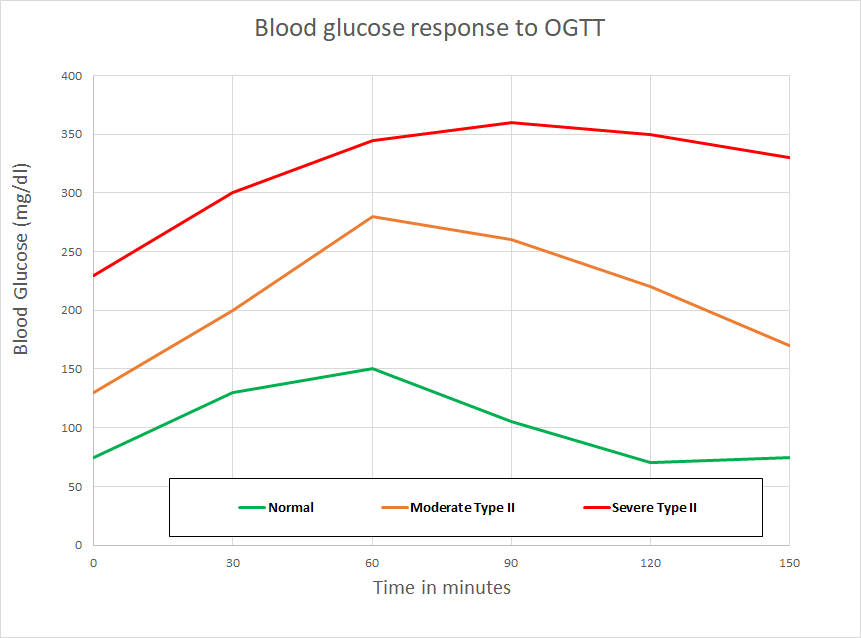

This chart shows data from an OGTT for three different people.
