Gunnerson Solar Installation

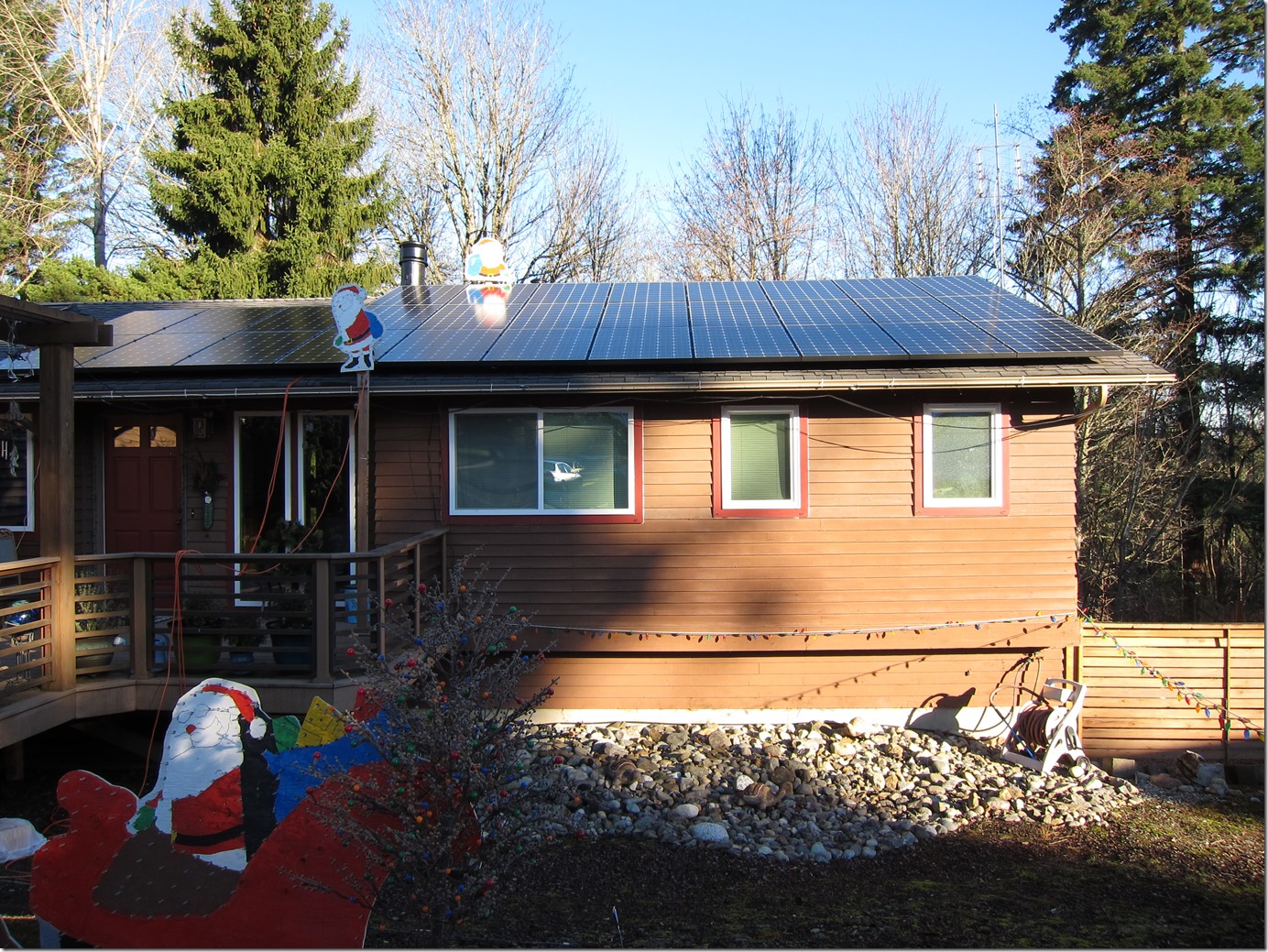

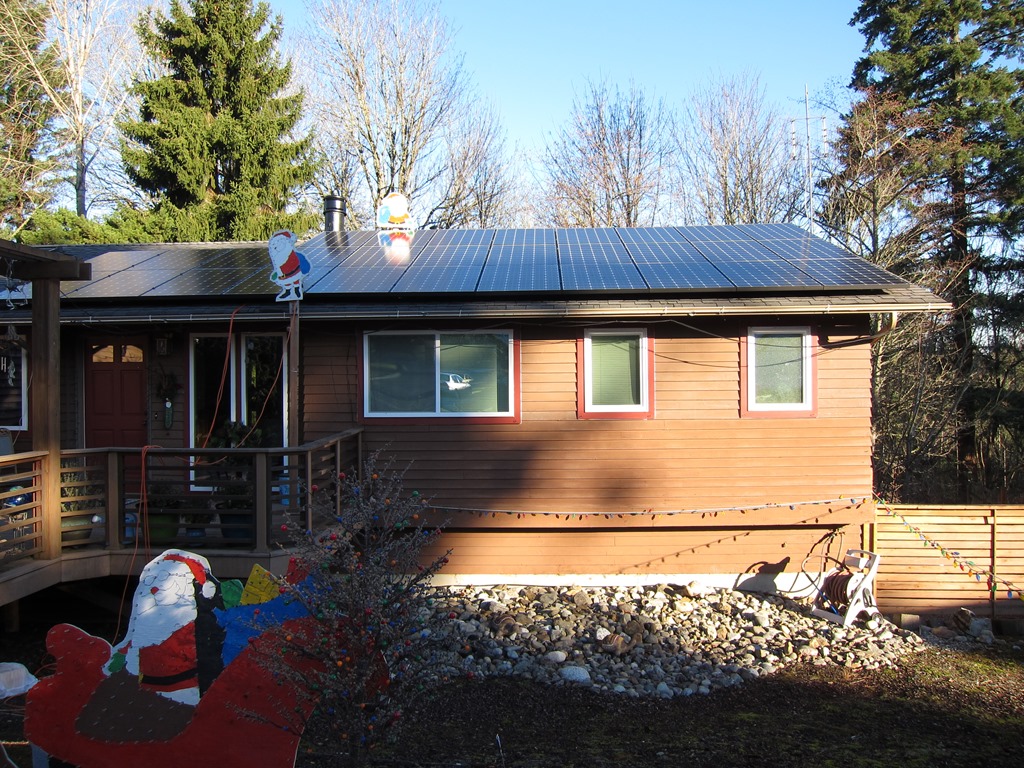

IMG_8645

We had a photovoltaic (aka solar cell) system installed on our house in mid-November, and I’ve had a few questions about it, so I thought I’d write something about it.

We got started through the Solarize Bellevue program, a city program designed to make it more straightforward for homeowners to install photovoltaic (PV) systems. The program provides a few things:

  1. Presentations where residents can get a lot of information and remove a lot of the confusion.
  2. A pre-qualified installer with pre-negotiated contracts
  3. Introductions to banks that can finance the installations.
  4. A well-thought-out process

I don’t know whether the program is going to repeat in 2016 or not, but if it does, I recommend it.

The equipment

The solar system consists of the following equipment:

  1. The solar panels, which convert the sunlight to direct current electricity.
  2. The inverter, which takes the direct current electricity and converts it to alternative current that is in sync with the power coming from the utility.
  3. A production meter, which measures the power that comes from the inverter.
  4. A replacement electric meter, which measures power coming from the utility into your house or going from the house back to the utility.
  5. Power monitoring equipment (optional, but nice).

IMG_8647

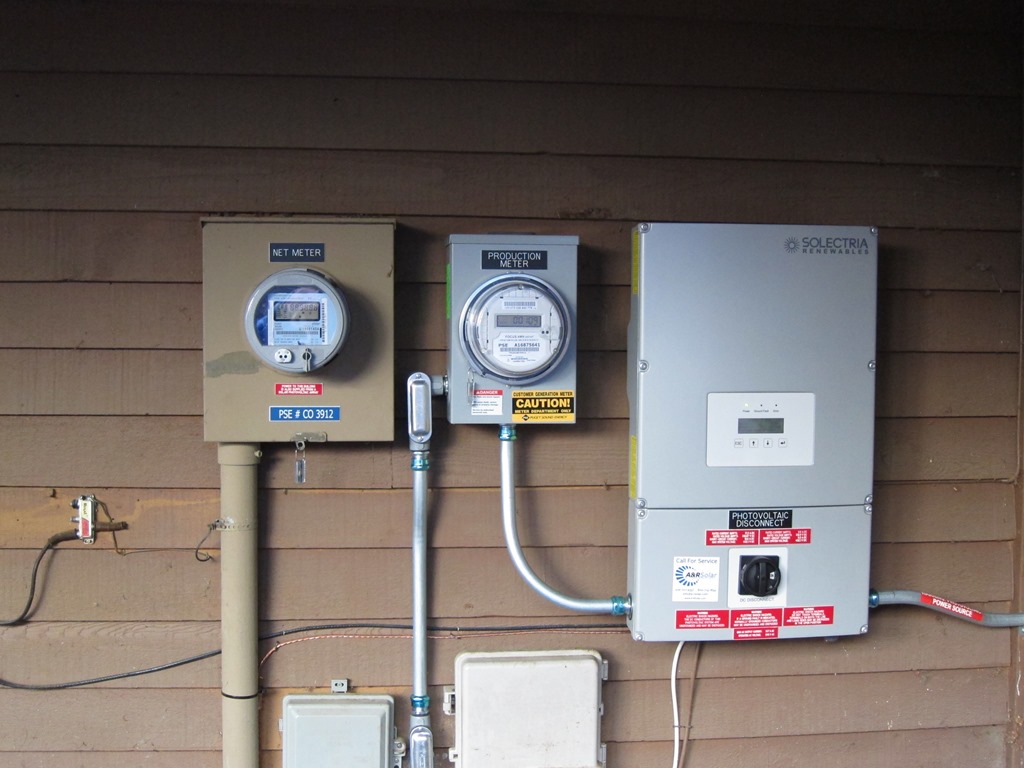

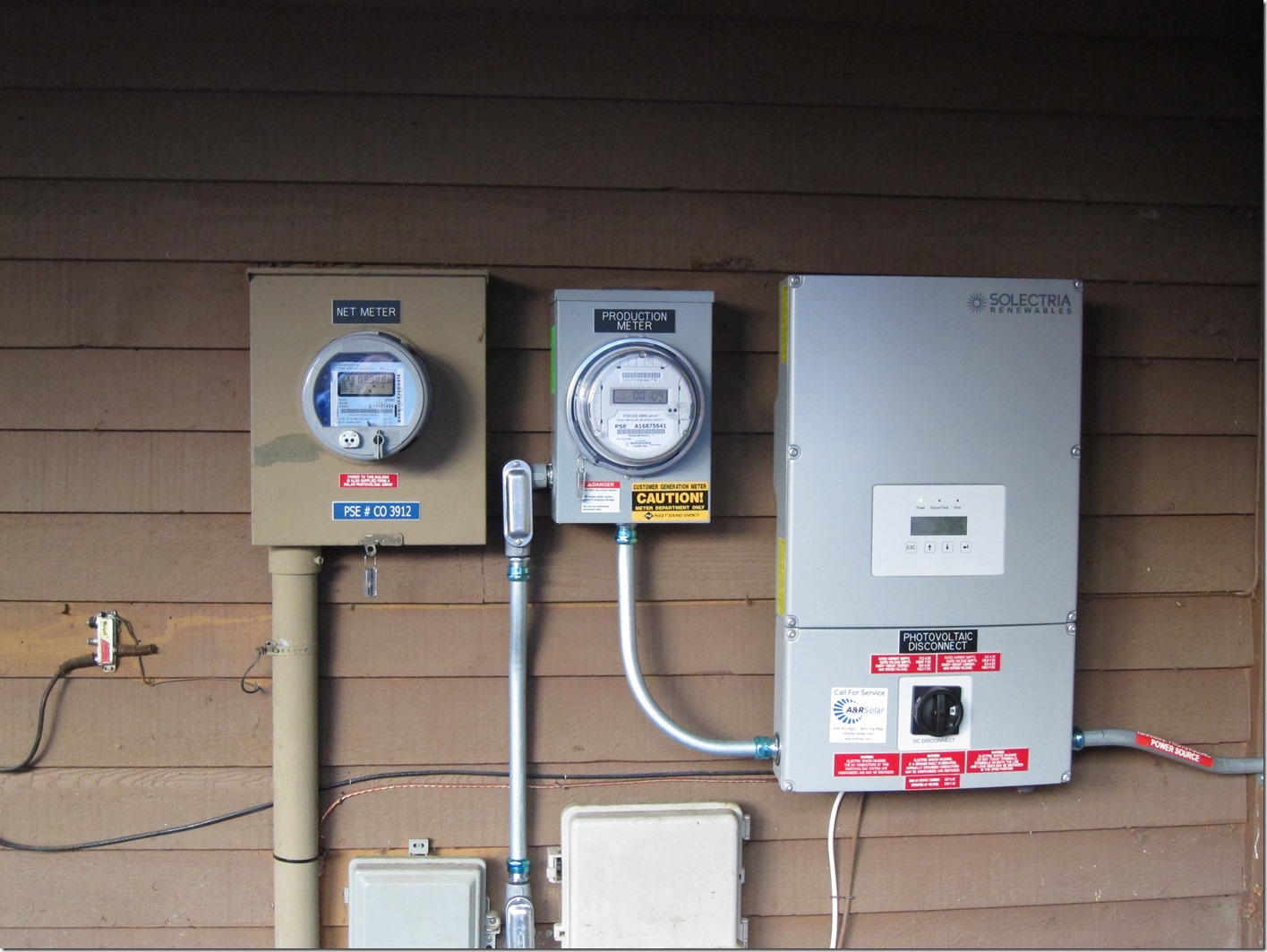

From left to right, the net (normal) meter (labeled “NET METER”), the production meter (labeled “PRODUCTION METER”), and the inverter (labeled with lots of scary labels because here is high voltage DC coming into the system if the sun is shining). The conduit fro the production meter goes down and back inside, coming into the service panel, where there is a 240V solar breaker.

Money and Stuff

There are a number of different incentives at play that make the monetary aspect complex. I will try to make it simple.

No sales tax

Systems that are 10 KW or less have no sales tax. AFAICT, those that cost more get some sales tax forgiveness.

This is very nice, but it’s mostly hidden, since you are going to have to remember that it allows you to pay $20K for a system instead of $22K if you do payback calculations.

Residential renewable energy tax credit

This is a federal tax credit worth 30% of the installed price of the system until 2019, with reductions in years after that.

Note that this is a tax *credit*, not a deduction, so it comes straight off of your tax bill.

Solar Production Incentives

With production incentives, you get paid by the utility for every KWh that your system produces – regardless of whether you use it or send it back out to the grid. That sounds pretty straightforward. Let’s add some complexity:

The incentive rate depends on where your solar panels and inverter (which convert the DC from the panels into AC for the grid) were manufactured. If the solar panels were built in-state, you get one bonus, and if the inverter is built in-state you get another. These can be significant; if both the panels and inverter are built in-state, the incentive can be $0.54 per KWh.

However, it gets more complex than that. The production incentives are paid from a pool that is 0.5% of the taxable power sales by the utility that serves you. The size of the pool varies based on how much power the utility sells for a year, and the number of people who are participating in the program and how much power they make. Last year’s bad winter meant less power to sell and there were lots of new systems, and for Puget Sound Energy customers at least, the rate is no longer $0.54.

So, the real answer is that you need to talk with your utility and they will give you some idea of what rate you might receive for the coming year. Puget Sound Energy projects $0.36 – $0.468 per KWh for the coming season.

The solar production incentives currently expire June 30, 2020. It is not clear whether they will be extended beyond that time or whether they will change the program to increase the per KWh rate.

Net metering

Net metering is very simple. If you are producing more power than you are consuming, you sell the excess back into the grid at your current rate.

Details of our system

63%

System Size 8.4 KW
Panels 30 Itek Energy 280 Watt panels
Inverter Solectria PVI-7600TL
System monitoring eGauge with Home Plug
Guaranteed KWh/year 7500
System Price $31,580
Expected power offset 63%

Our installer is A&R solar, and we were quite happy with their service.

Our payback was originally calculated at 4.4 years at the $0.54/KWh production incentive. It’s obviously worse with lower rates. A quick look at the numbers says the payback is about 8 years at the $0.486 rate and 12 years at the $0.36 rate. This assumes that the production credit goes away in 2020 and does not come back.

Power monitoring

One of the nice things about the agreement between the city and our installer is the inclusion of the eGauge monitoring system as a free bonus. This gives real-time monitoring of the amount of power the panels are producing and how much is being used by the house. It does nice graphs like this:

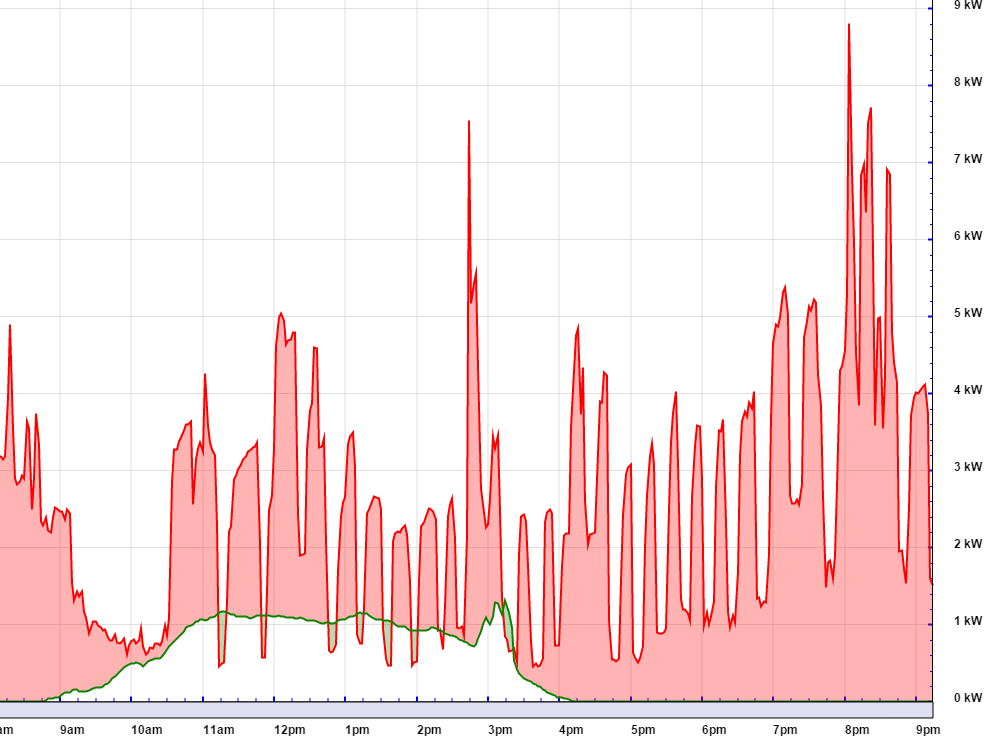

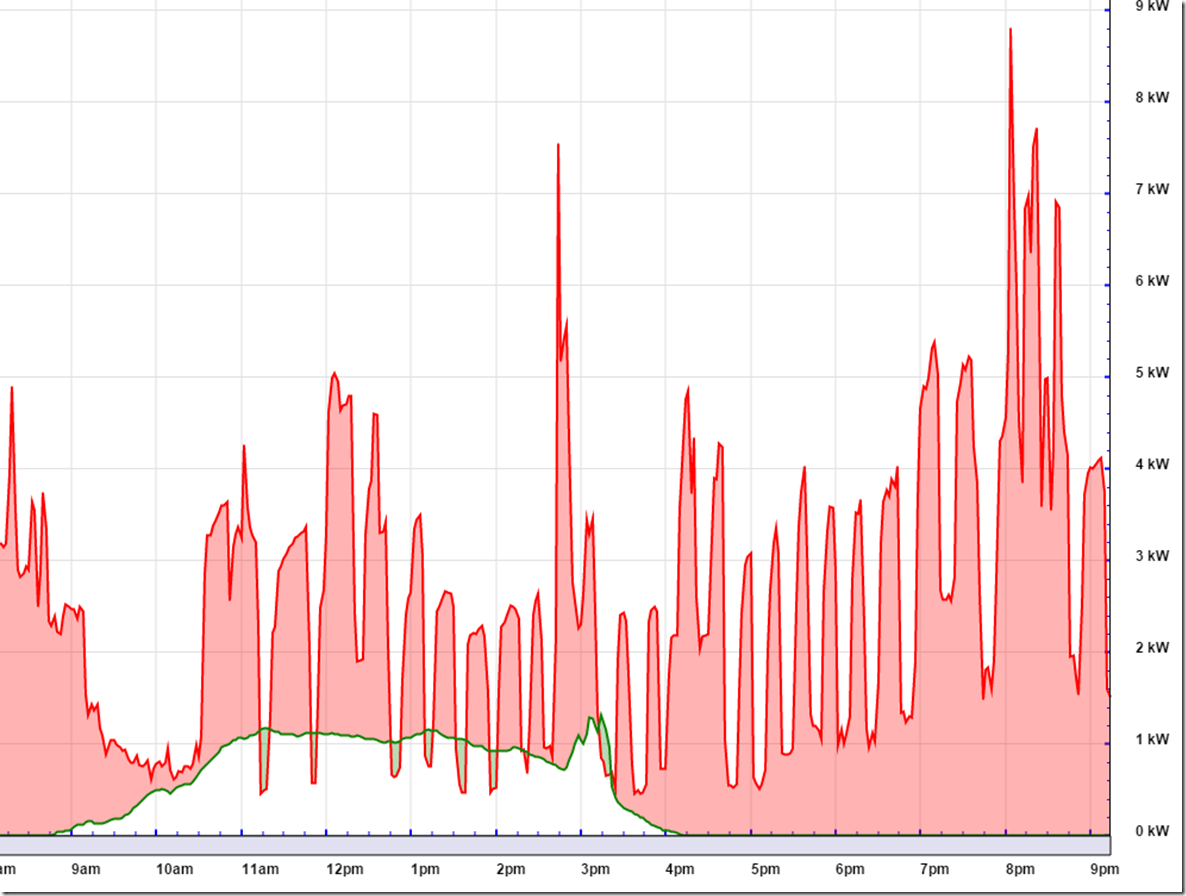

Energy usage

Okay, so it’s December 29th, which is one of the shortest days of the year, and though it was light for December, it wasn’t really very sunny, and the sun is low in the sky. The green line is the power produced by the panels today; not surprisingly, it doesn’t really peak that high. The peaks around 2KW are the heat pump switching on and off, and the really high ones are both the heat pump and the dryer.

The system updates continuously, and it’s good enough that you can use it to figure out roughly how much power appliances or lights use; turn on the lights, look at the usage, turn it off, look at the usage, and get a good idea how much power is being used.

Details

A few details that I think might be of interest.

The main panels face pretty much due west on a roof with a 1/4 pitch. This is not an optimal placement or orientation, but the installation – which is flat on the roof plane – is simpler, cheaper, and looks better than the alternatives.

The most-commonly-asked question is “can you use your system during power outages?”. The answer with the current system is “no” – as a safety measure, the grid-tied inverters only work when there is power coming in from the utility. There are solar solutions that provide this capability, but they cost more $$$.  There are also ways to trick your inverter with a small inverter driven off a battery; the actual implementation of that approach is left as an exercise for the readers. Note that there is from 200 volts to 500 volts DC coming into the system, which is a pretty dangerous voltage.
